INSERTABLES DE LEÑA ECODESIGN
CRYSTAL ECODESIGN LINE

WOOD INSERTS

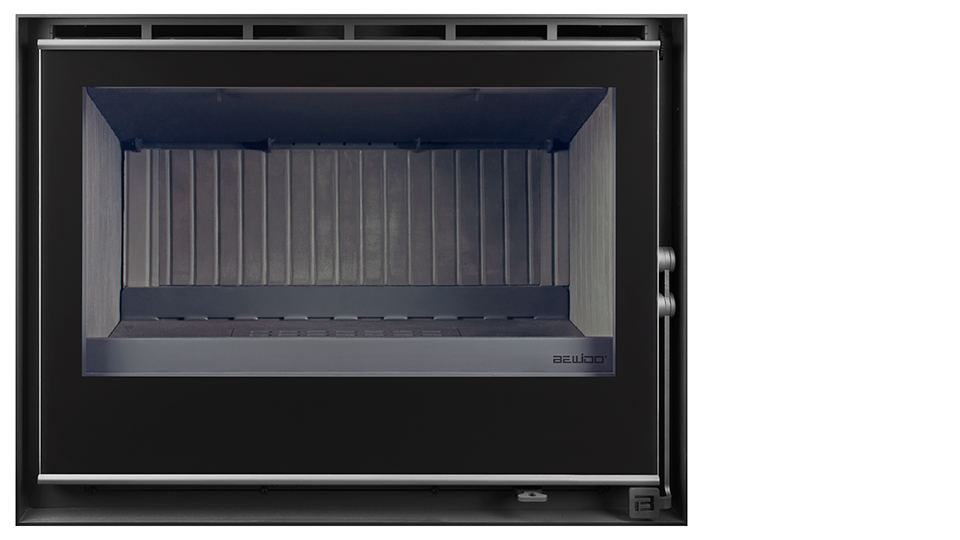

CRYSTAL FLAME 70

INTERIOR
BLACKERAM®
EFFICIENCY
ECOLOGIC
INSERTABLES DE LEÑA ECODESIGN

DESCRIPTION

Ecodesign Wood Inserts.

  • New ecological design “ECODESIGN 2022” of sustainable combustion products without harming the environment.
  • The “Crystal Flame” 70, 80 and 100 inserts are the ideal solution for your home.
  • Safe, practical, silent and ecological that allow heating very large surfaces in very short-time periods.
  • Wood-burning insert in modern design, interior in BLACKERAM®.
  • Provided with a forced ventilation system with a silent double-body tangential turbine of up to 220 m3. Two speeds and safety thermostat.
  • Prearranged for 2 outlets to channel hot air to connecting rooms
  • Post combustion system.
  • Available in 3 sizes: 70, 80 and 100.

TECHNICAL DATA

Dimensions

69,2 X 55,5 X 46 cm.

Smoke vent

150 mm.

Weight

130 Kg.

Power

>7,3

Performance

% >78

Certification

European Community

Combustible

Wood

Materials

Great Quality

INSERTABLES DE LEÑA ECODESIGN

DIMENSIONS

A

B

C

D

E

F

G

I

69,2

55,5

46

15

17,2

27

12,5

12

cm

INSERTABLES DE LEÑA ECODESIGN

OPTIONAL

Trim frame with Black Steel or Stainless Steel finish.

  • BLACK FRAME: 50 mm & 20 mm.
  • STAINLESS STEEL FRAME: 50 mm & 20 mm.

Deluxe kit (Glass fastening and closing system in stainless steel).

External regulator for ventilation system.
