INSERTABLES DE LEÑA ECODESIGN DOBLE FRENTE
CRYSTAL ECODESIGN LINE

Double Sided WOOD INSERTS

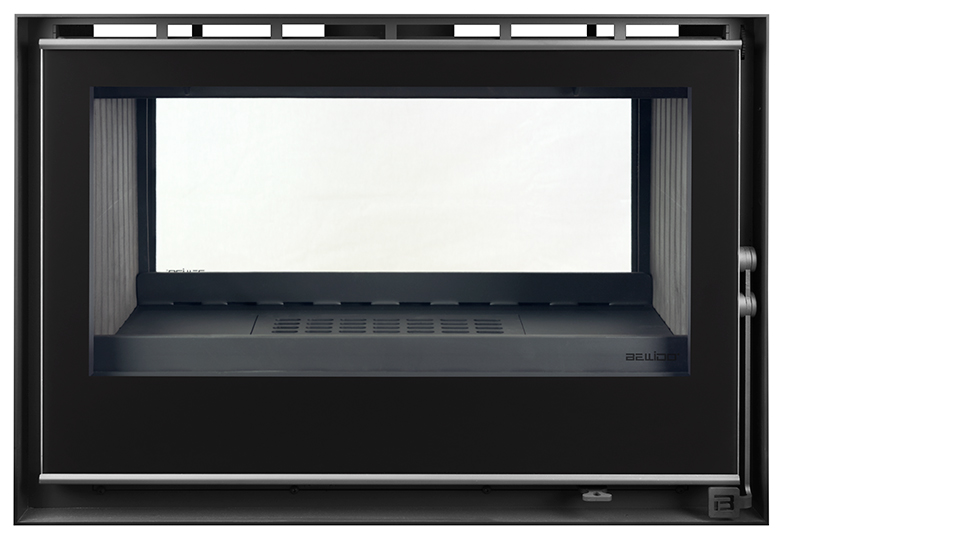

CRYSTAL FLAME 80 DF

INTERIOR
BLACKERAM®
EFFICIENCY
ECOLOGIC
INSERTABLES DE LEÑA ECODESIGN

DESCRIPTION

Ecodesign Double Sided Wood Inserts.

  • New ecological design «ECODESIGN 2022» of sustainable combustion products without harming the environment.
  • The 70, 80 and 100 «Crystal Flame Double Face» inserts are the ideal solution for your home.
  • Safe, practical, silent and ecological that allow heating very large surfaces in very short-time periods.
  • Wood-burning insert in modern design, interior in BLACKERAM®.
  • Provided with a forced ventilation system with 2 tangential turbines of a silent single body of up to 220 m3. 2 speeds and safety thermostat.
  • Prearranged for 2 outlets to channel hot air to connecting rooms.
  • Post combustion system.
  • Available in 3 sizes: 70, 80 and 100.

TECHNICAL DATA

Dimensions

78,1 X 55,5 X 46,8 cm.

Smoke vent

175 mm.

Weight

138 Kg.

Power

>10,6

Performance

% >82

Certification

European Community

Combustible

Wood

Materials

Great Quality

INSERTABLES DE LEÑA ECODESIGN

DIMENSIONS

A

B

C

D

F

G

I

78,1

55,5

46,8

17,5

21,3

12,5

12

cm

INSERTABLES DE LEÑA ECODESIGN DOBLE FRENTE

OPTIONAL

Trim frame with Black Steel or Stainless Steel finish.

  • BLACK FRAME: 50 mm & 20 mm.
  • STAINLESS STEEL FRAME: 50 mm & 20 mm.

Deluxe kit (Glass fastening and closing system in stainless steel).

External regulator for ventilation system.
